# For the circuit of Fig. 4.81. Find the Thevenin equivalent to the left of terminals ‘ab’. Find ν ( t ) and also find the complex power consumed by 0.8 H inductor.

hwmadeeasy
Begginer

Lost your password? Please enter your email address. You will receive a link and will create a new password via email.

Please briefly explain why you feel this question should be reported.

Please briefly explain why you feel this answer should be reported.

Please briefly explain why you feel this user should be reported.

Transforming to frequency domain

$\begin{array}{cc}{\displaystyle}& {\displaystyle 5\sqrt{2}\mathrm{cos}5t5\mathrm{\angle}{0}^{\circ}V,\omega =5\mathrm{r}\mathrm{a}\mathrm{d}\mathrm{/}\mathrm{s}}\\ {\displaystyle}& {\displaystyle 2\mathrm{\Omega}\to 2\mathrm{\Omega}}\\ {\displaystyle}& {\displaystyle \frac{\mathrm{}}{}}\end{array}$$0.8\mathrm{H}\to j5\times 0.8=+j4\mathrm{\Omega}$

The corresponding circuit is drawn in Fig. 4.81 (a).

Open circuit voltage, disconnect inductor $j4\mathrm{\Omega}$ as in Fig. 4.81 (b).

${V}_{oC}$VoC is same as voltage across $2\mathrm{\Omega}$2Ω as $-j1\mathrm{\Omega}$ does not carry any current. Therefore

$\begin{array}{cc}{\displaystyle {V}_{OC}={V}_{TH}}& {\displaystyle =\left(\frac{2}{2+j5}\right)5\mathrm{\angle}{0}^{\circ}}\\ {\displaystyle}& {\displaystyle =1.857\mathrm{\angle}-68.{2}^{\circ}\mathrm{V}}\end{array}$

Thevenin impedance

Short circuit $5\mathrm{\angle}{0}^{\circ}\mathrm{V}$as in Fig. 4.81 (c)

Impedance seen from ‘ $ab$ab ‘

$\begin{array}{cc}{\displaystyle {\stackrel{\u02c9}{Z}}_{TH}}& {\displaystyle =-j1+\frac{j5\times 2}{2+j5}\frac{\mathrm{}}{}}\\ {\displaystyle}& {\displaystyle =-j1+1.857\mathrm{\angle}21.{8}^{\circ}}\\ {\displaystyle}& {\displaystyle =1.724-j0.310\mathrm{\Omega}}\end{array}$

Complex power drawn by $0.8\mathrm{H}$

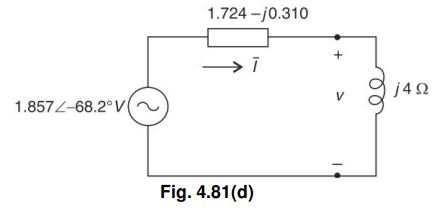

The Thevenin equivalent with load 0.8 is drawn in Fig. 4.81 (d). From the figure

Current, $\stackrel{\u02c9}{I}=\frac{1.875\mathrm{\angle}-68.{2}^{\circ}}{1.724-j0.310+j4}$∘

$\begin{array}{cc}{\displaystyle \stackrel{\u02c9}{I}}& {\displaystyle =\frac{1.875\mathrm{\angle}-68.{2}^{\circ}}{5.737\mathrm{\angle}3.{1}^{\circ}}=0.327\mathrm{\angle}-71.{3}^{\circ}\mathrm{A}}\\ {\displaystyle \stackrel{\u02c9}{V}}& {\displaystyle =\stackrel{\u02c9}{I}\mathrm{.}j0.8=0.327\mathrm{\angle}-71.{3}^{\circ}\times j4}\\ {\displaystyle}& {\displaystyle =1.308\mathrm{\angle}18.{7}^{\circ}\mathrm{V}}\end{array}$

Then

$\nu \left(t\right)=1.308\sqrt{}2\mathrm{cos}(5+18.{7}^{\circ})v\mathrm{}$Complex power consumed by $0.8\mathrm{H}$0.8 H

$\stackrel{\u02c9}{S}=j(0.327{)}^{2}\times 4=0+j0.428\mathrm{V}\mathrm{A}$

or

$S=0.428VARs\; (inductive)$Note + sign

Also by relationship

$\begin{array}{cc}{\displaystyle \stackrel{\u02c9}{S}}& {\displaystyle =\stackrel{\u02c9}{V}{\stackrel{\u02c9}{I}}^{\ast}=1.308\mathrm{\angle}18.{7}^{\circ}\times 0.327\mathrm{\angle}71.{3}^{\circ}}\\ {\displaystyle}& {\displaystyle =0.482\mathrm{\angle}9{0}^{\circ}=0+j0.482\mathrm{V}\mathrm{A}}\end{array}$
